Description

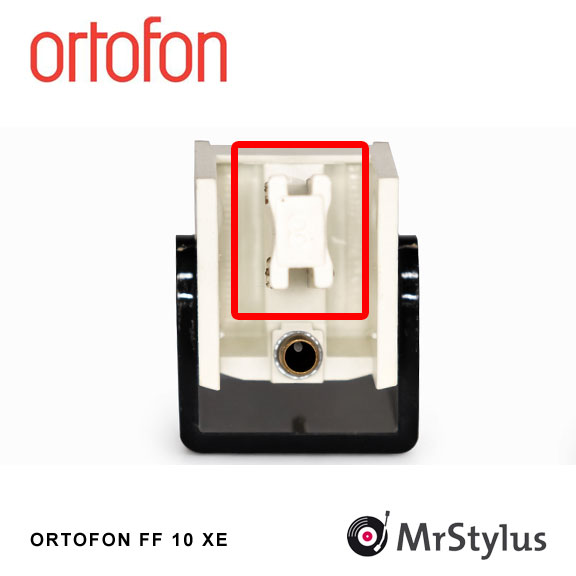

Original replacement stylus for ORTOFON FF 10 XE
- Manufacturer: Ortofon
- Designation: Ortofon FF10XE
- Frequency range – 20-22.000 Hz
- Frequency response – 20-20.000 Hz + 2 / – 3 dB
- Tracking ability at 315Hz at recommended tracking force *) – 50 µm
- Compliance, dynamic, lateral – 10 µm/mN
- Stylus type – Elliptical
- Stylus tip radius – r/R 8/18 µm
- Equivalent stylus tip mass – 0.65 mg
- Tracking force range – 1.7-2.3 g (17-23 mN)
- Tracking force, recommended – 2.0 g (20 mN)
- Tracking angle – 20°
